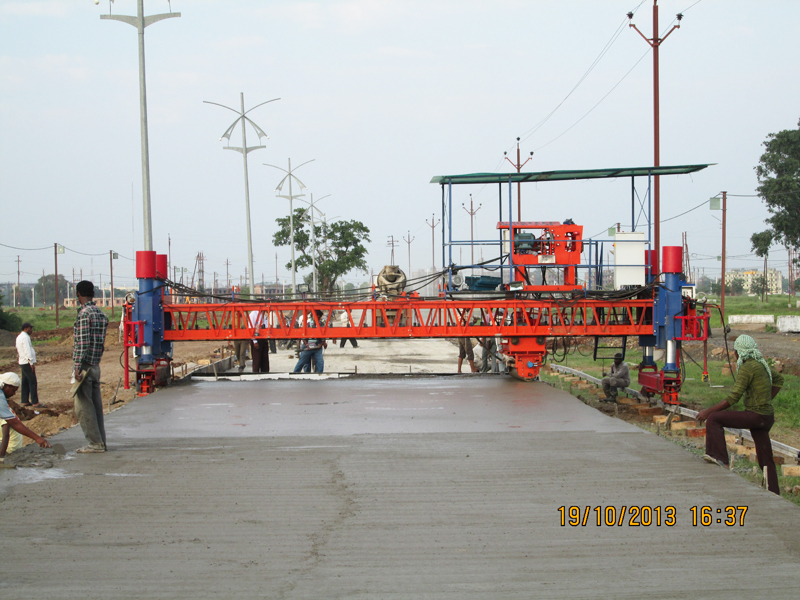

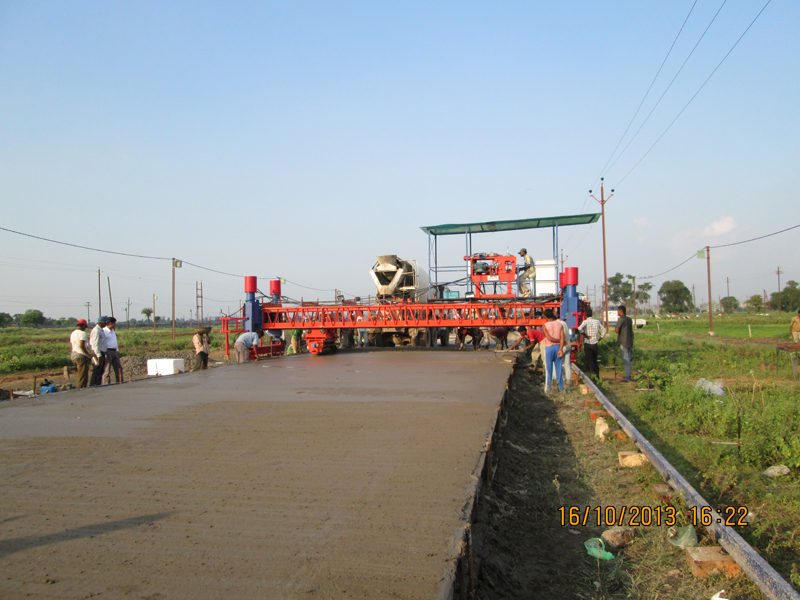

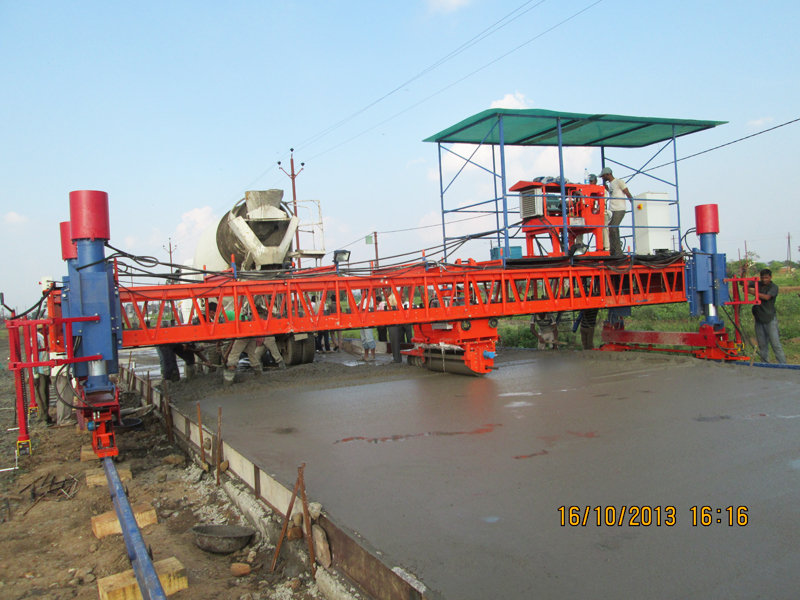

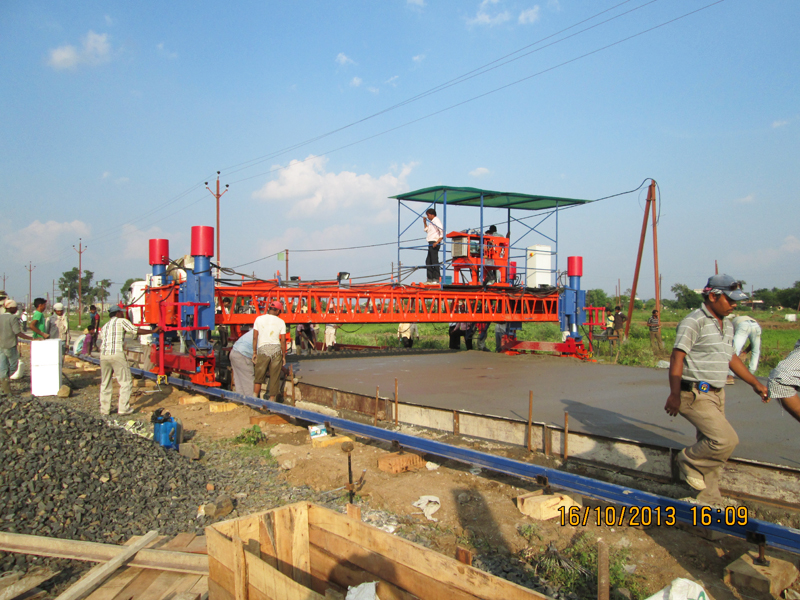

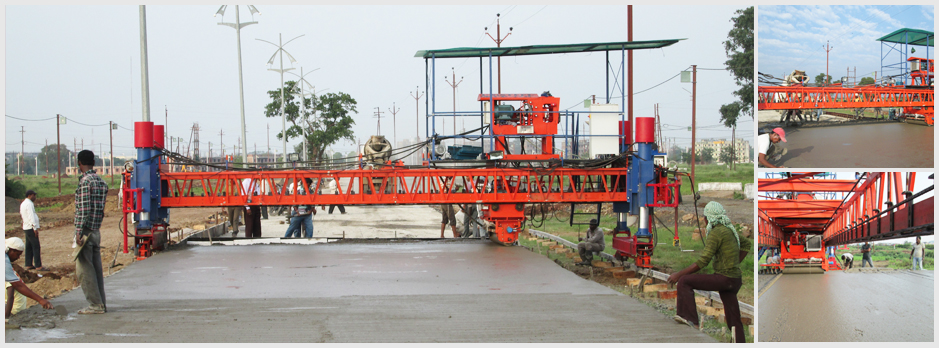

SRCP 720 Concrete Electronic Sensor Paver

  • High precision cylinder finisher for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts, Canal, Reservoir etc.
  • It can finish a width from 3.5 mtrs. To 20 mtrs. ( It is a custom design paver )
  • Machine can finish a width up to 150 Sq. Meter/hour at suitable site condition.
  • The special under carriage consists of a spreader extra length auger to spread the concrete to level, the finishing cylinder to compact and finish the concrete to the grade.
  • Finishing roll bracket is equipped with vibrator.
  • Heavy Duty Hydraulic Jacks & Moba (Germany) Make Electronic Sensor.
PRIME MOVER (With Needle Vibrator) 10HP 1440-RPM for Fix Console.
20HP 1440-RPM for under carriage
PRIME MOVER (Without Needle Vibrator) 10HP 1440-RPM for Fix Console.
7.5HP 1440-RPM for under carriage

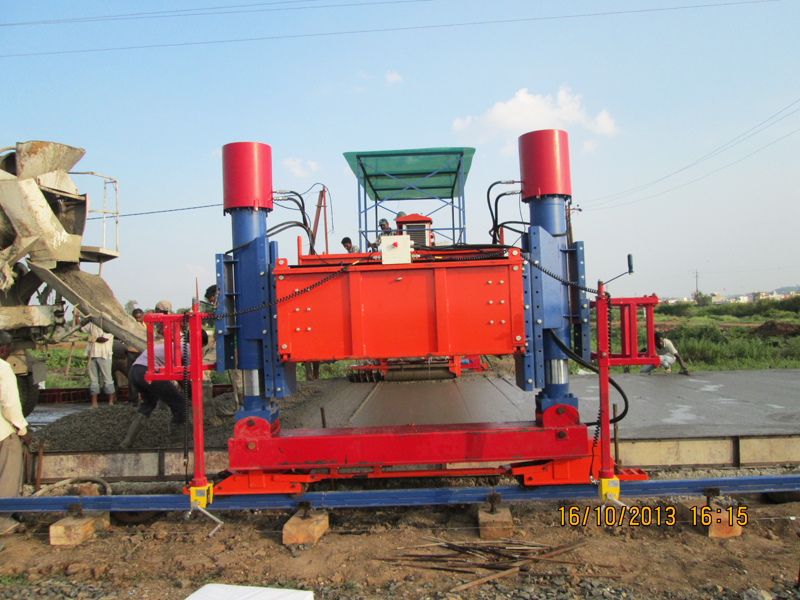

Fix Console This hydraulic console controls the forward and reverse movement of the under carriage and the travel track chain by means of hydraulic motors.

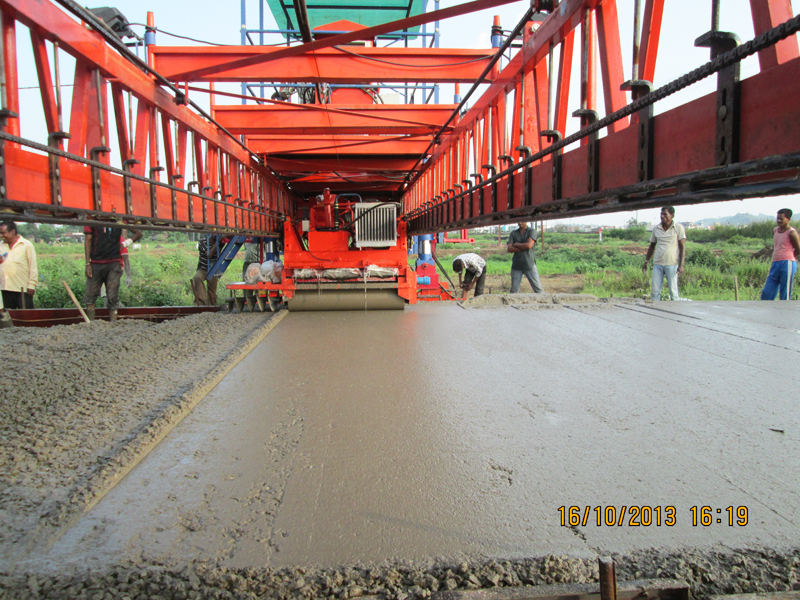

Under Carriage/Finisher Assembly Under Carriage accommodates the most critical components of the machine. It encompasses the vibratory finishing drum, Spreader Auger.
Hydraulic Needle Vibrators(Optional)
The Under Carriage travels with a speed 30 meters/ minute.
Vibratory Finishing Drum The finishing drum is 4 feet length and 10.7 inches (272mm) in diameter. It rotates at a speed of 195 rpm. The finishing drum vibrates at 1500 vpm. This drum is precisely balance with the help of computerized balancing system to obtain quality finish.
Spreader Auger The Auger is welded with hard faced welding to obtain maximum life. The auger is designed to work in the direction of travel movement ot the machine.
Traction System Two Hydraulically driven flanged wheels bogie.
Sensor Gradation Moba ( Germany ) Make Electronic Sensor system to obtain maximum accuracy.
Jack System Heavy duty hydraulic jack system.
Hydraulic Oil Capacities Fix console: 110 Liters.
Under carriage: 140 Liters.
